Water-cooled Variable Frequency Drives Inverter

Product Introduction

- Open-loop Vector Control and VF control；

- Superior performance, good environmental adaptability;

- Simple structure, compact size, easy installation；High-performance vector inverter with high torque output for smooth heavy-load motor starting;

- It features instantaneous power failure ride-through and fast current limiting, which can reduce the frequency of fault alarms on the inverter;

- Comprehensive protection functions, including output phase loss protection, overcurrent protection, overvoltage protection, overload protection and overheating protection;

- Supports Permanent Magnet Synchronous Motor Control;

- 380v: 45~160kW.

Technical Features of Water-Cooled VFDs

Model: Z2400T-45GY-YL / Z2400T-55GY-YL

Water-cooling pipe diameter: 20 mm

Water-cooling plate pressure resistance: Max. 0.5 MPa

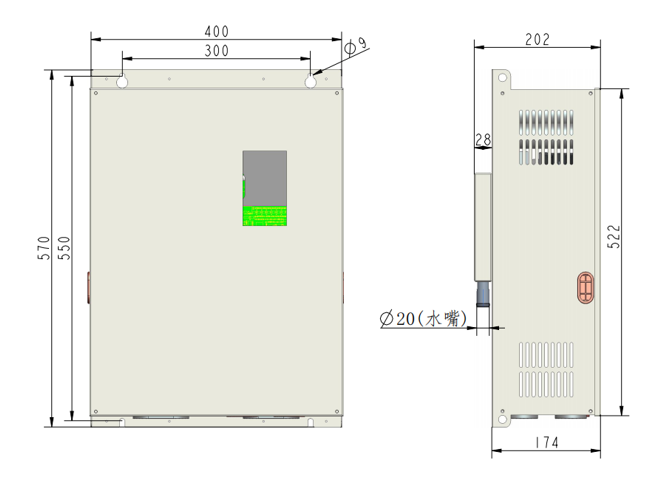

Model: Z2400T-75GY-YL / Z2400T-90GY-YL / Z2400T-110GY-YL

Water-cooling pipe diameter: 20 mm

Water-cooling plate pressure rating: Max. 0.5 MPa

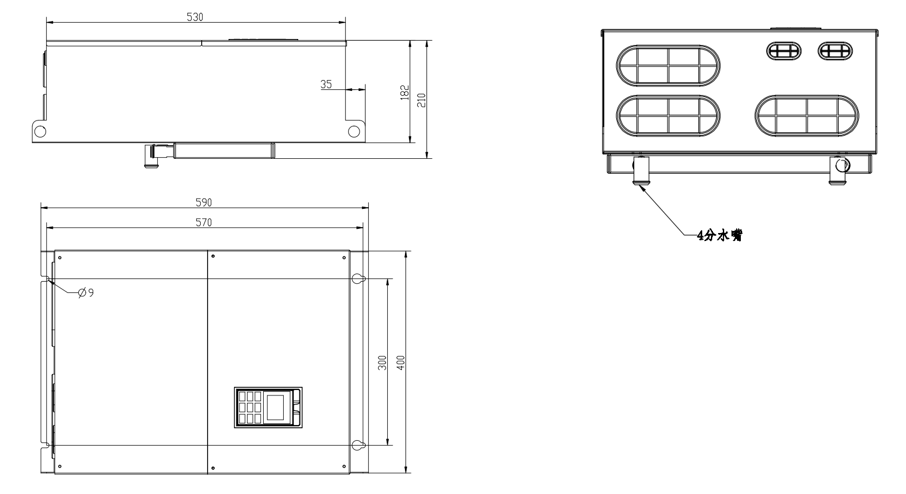

Model: Z2400T-132GY-YL

Water-cooling pipe diameter: 20 mm

Water-cooling plate pressure rating: Max. 0.5 MPa

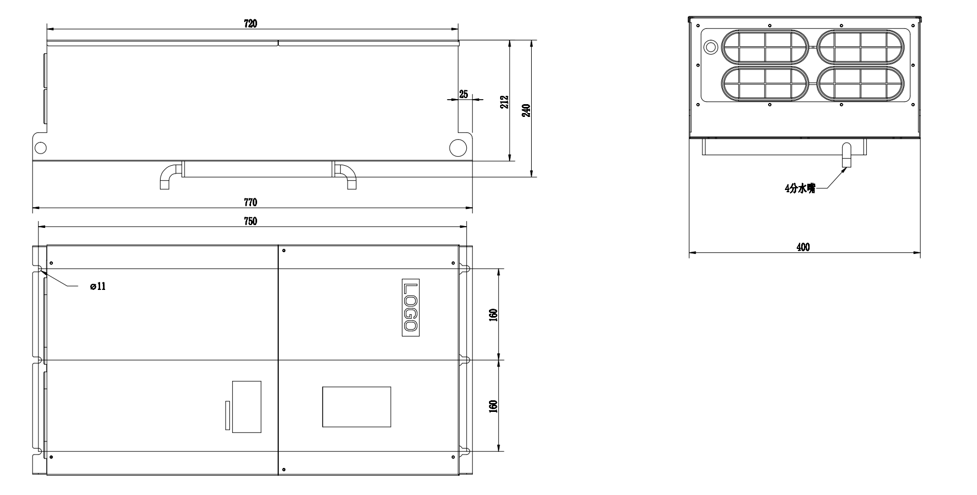

Model: Z2400T-160GY-YL

Water-cooling pipe diameter: 20 mm

Water-cooling plate pressure rating: Max. 0.5 MPa
