Integrated Controller for Construction Hoist

Construction hoists are essential vertical transportation devices for modern high-rise building construction. The ZONCN S8000 series integrated controller for construction hoists is a specialized model developed specifically for this equipment. It integrates a frequency converter, brake unit, load capacity limiter, logic control circuit, and various components into one compact unit.Compared with traditional variable frequency electric control cabinets, it's much smaller and lighter, making it easy to install inside the hoist cage and transport. It also costs less, is simpler to install, and saves labor costs compared to variable frequency hoist control cabinets.All input and output limit signals are clearly marked with LED indicators and silk-screen labels, so maintenance is extremely convenient.

Specification

Product features

- The live-action intelligent voice announcement and prompt function

Real-time live voice broadcast, capable of reporting system failures, limit positions, operation status and system prompts. It features a pleasant and soft voice, clear speech rate, adjustable volume, and the option to be turned off selectively.

- Visualized limit input indication

Lift Limit Input Visualization allows for quick checking of the external limit input status via the indicator lights on the input terminals, simplifying maintenance and fault diagnosis.

- Clock pre-authorization settings

The system is equipped with a built-in calendar chip, which enables precise setting of the device's pre-authorization time. In addition to accurately recording system fault time, cumulative operating time, and weight overload records, users can also manage the device via remote authorization, such as controlling the start/stop machine time.

- User parameter saving and restoration settings

After the hoist is installed, users can adjust relevant parameters according to their usage habits. When the optimal operating state is set, the user's parameter values can be saved. In case of a change in construction site or parameter setting errors, the user's optimal parameter values can be restored through the parameter settings, eliminating the need for re-adjustment and making operation more convenient for users.

- Soft limit and limit input protection function

Lower Limit Deceleration Time Switching: By setting the lower limit deceleration time, the cage can stop precisely at the ground floor without the need for repeated adjustments to the position of the lower deceleration limit switch plate.

- High-Reliability Brake Circuit Software and Hardware Design

It adopts dual brake logic and a high-reliability redundant control design. Before brake release and during operation, the system detects motor torque in real time, providing maximum safety protection against cage slippage. The professional sequential logic braking function ensures reliable brake release and engagement.

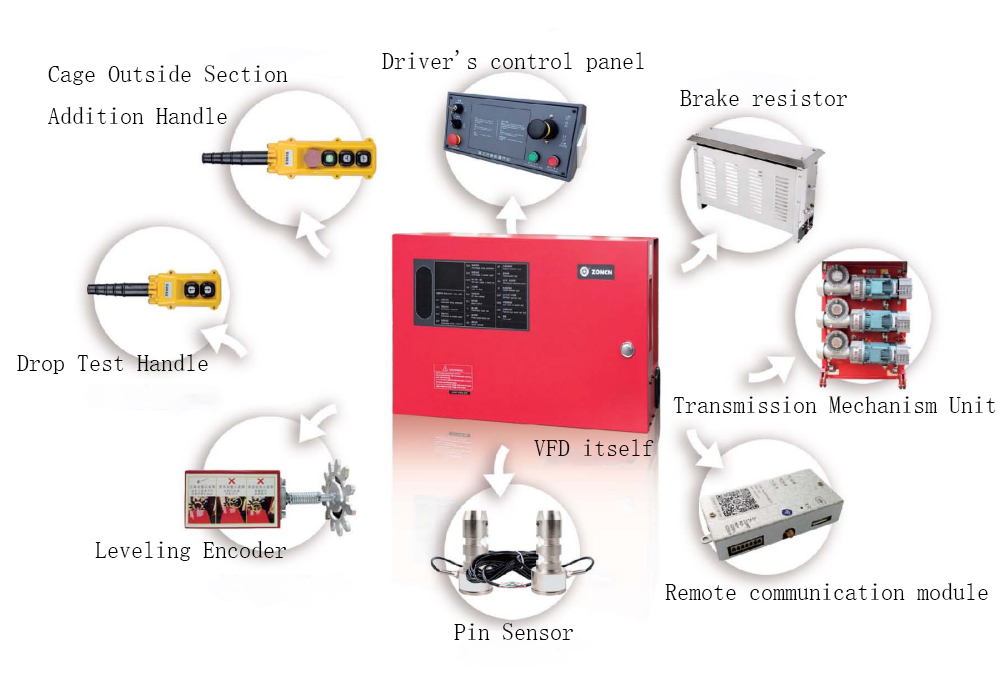

System composition

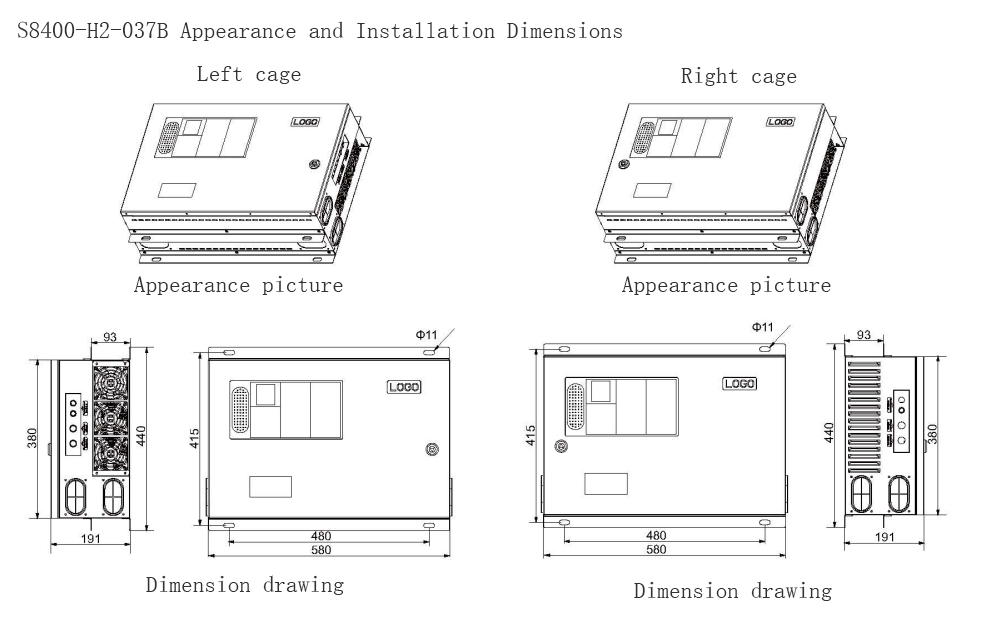

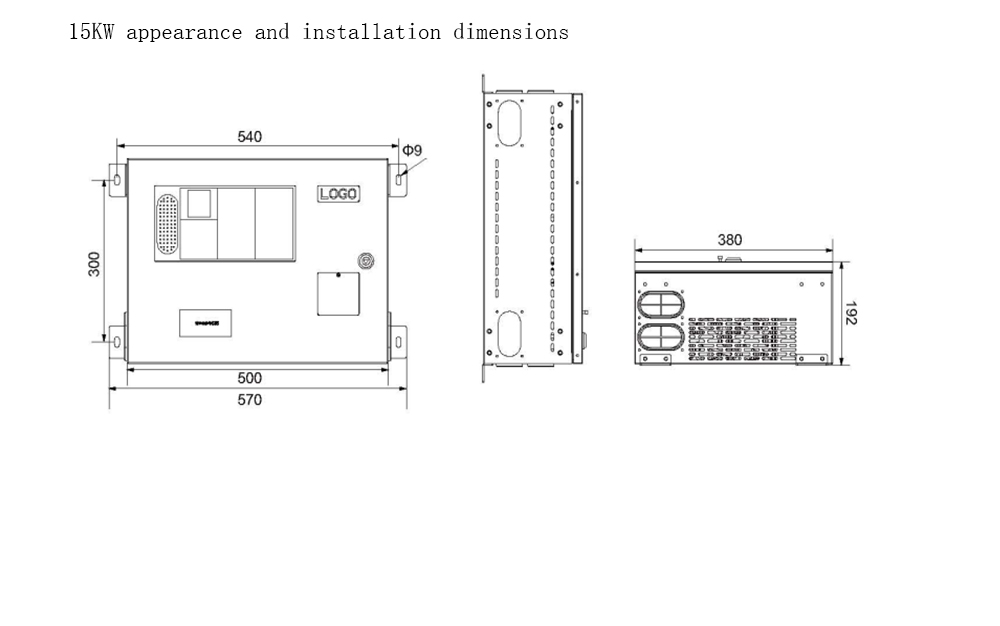

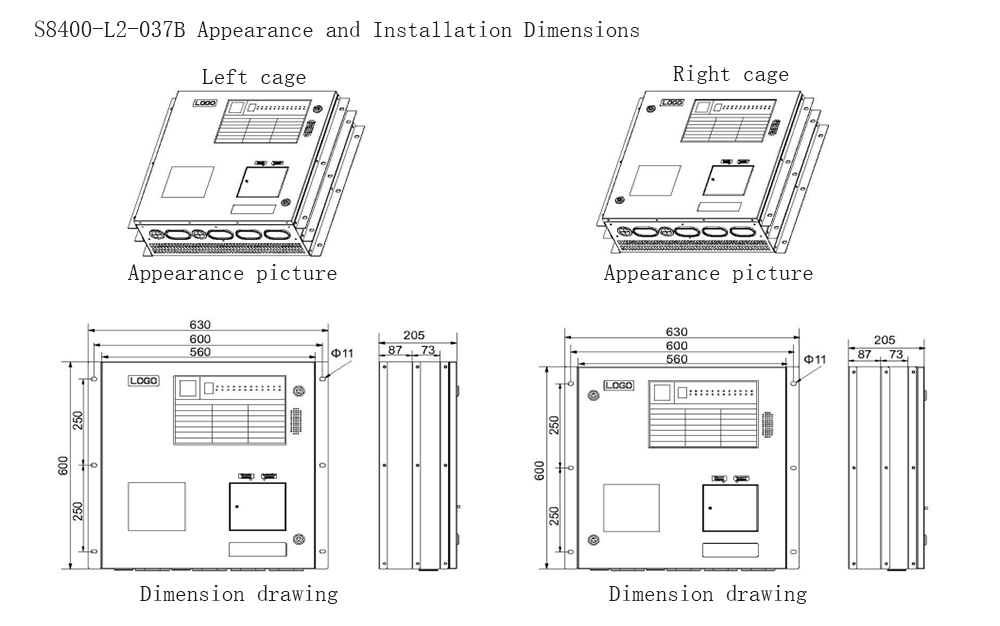

Product shape and size
