ZX300 Series Compact Size PLC

ZX300 Series PLC

Product Introduction

The ZX300 series PLC is a small-sized PLC system launched by ZONCN Technology in response to market demands. Its design is compatible with the Mitsubishi FX3U series. Equipped with the self-developed Zx Works programming system, it supports ladder diagram and pulse instruction programming. It is mainly applied to general logic control, and when combined with our company's frequency inverters and pulse servos, it can realize logic control and simple motion control. It supports the Modbus RTU communication method, and can connect to slaves such as sensors and frequency inverters via the Modbus bus protocol, enabling data interaction with HMI.

Features

Diversified input and output configurations

·The Series 301 supports up to 4 channels of high-speed pulse output, 4 channels of single-phase high-speed input counting, or 1 channel of AB-phase + 2 channels of single-phase high-speed counting.

·The Series 305 supports up to 5 channels of high-speed pulse output, with the first 2 channels at 200KHz and the latter 3 channels at 100KHz; it also supports 2 channels of AB-phase high-speed counting or 3 channels of single-phase high-speed counting.

Rich storage & communication

·64,000 steps of program storage units and 16K of power failure retention data, meeting the requirements of most logic control scenarios.

·RS232 communication port: Supports Modbus RTU master-slave communication; enables downloading and monitoring of user programs.

·RS485 communication port: Supports Modbus RTU master-slave communication; Models ZX305 and ZX351 support downloading and monitoring of programs via 485.

·Type-C Port: Supports Type-C download & monitor of user programs.

User-friendly programming platform

·Self-developed programming environment ZX Works, featuring easy operation and convenient programming (Under development, to be supported in subsequent releases).

·Compatible with Mitsubishi's programming software, it enables seamless program migration, and features programming instructions similar to those of most small-sized PLCs

Flexible expansion modules

·Models ZX301 and ZX305 support two types of expansion modules: the X10 Series and the E10 Series; Model ZX305 additionally supports the E15 Series of expansion modules.

·Model ZX301 supports up to 12 X10 Series expansion modules and 1 E10 Series expansion module (the E10 Series module must be connected to the first slot on the right); Model ZX305 supports up to either 1 E15 Series expansion module (the E15 Series module must be connected to the first slot on the right) or 1 E10 Series expansion module (the E10 Series module must be connected to the first slot on the right).

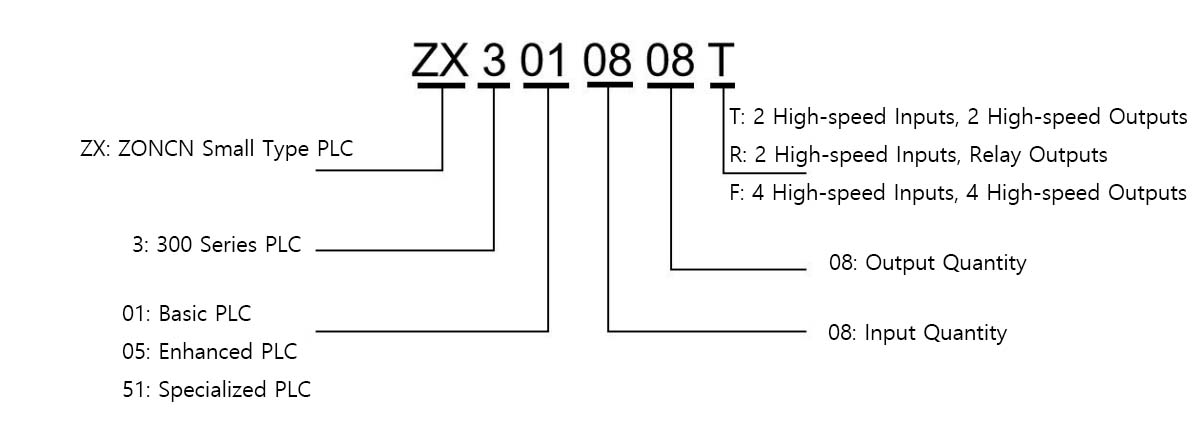

Name Rules

Main unit

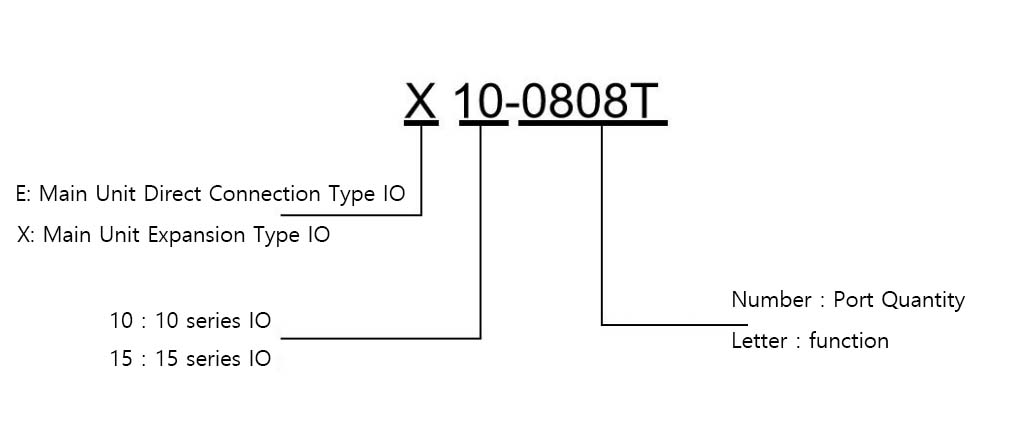

Expansion module

Product Specification

Model	ZX301-0808T	ZX301-0806R	ZX301-0808F	ZX305-0808F

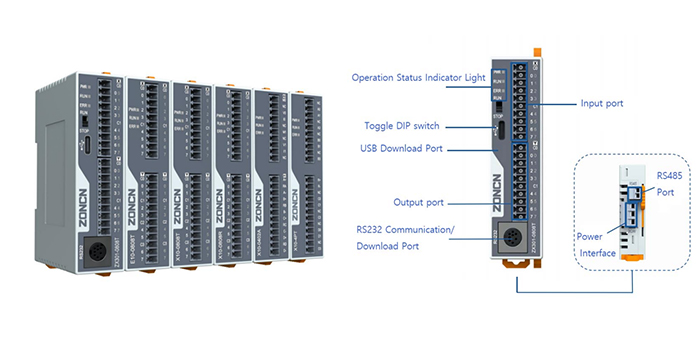

Pictures
Input Power Supply	DC 24V±20%, Max 4A, Typical 2.4A; supports short-circuit/reverse polarity protection, no external UPS required.
Data/Storage Capacity	128K or 64,000 steps of program storage units, as well as 4K of power failure retention data capacity.
High-speed Counter	2-channel Single-ended High-speed Counting (100K) or 1-channel AB-phase High-speed Counting (100K)		4-channel Single-ended High-speed Counting (100K) or 1-channel AB-phase plus 2-channel Single-ended High-speed Counting (100K)
Output and input	Built-in 8I/8O on main unit (incl. HSI/HSO)	Built-in 8I/6RO on main unit (incl. HSI)	Built-in 8I/8O on main unit (incl. HSI/HSO)
Pulse output	2-channel High-speed Outputs (100K)	Relay Output	4-channel High-speed Outputs (100K)	5-channel High-speed Outputs (100K)
Program Execution Mode	Cyclic Scanning, Interpretive Execution
Power Failure Retention	1S	1S	1S	1S
Communication Specifications	1-channel RS232; 1-channel RS485
Run/Stop	Can realize PLC operation/start-stop function
Modbus communication	Support Modbus RTU communication
USB communication	Type-C Port enables program downloading, monitoring and debugging; firmware updating
Expansion module	E10 Series (Direct connection to the main unit, max. 1 unit)；X10 Series (Communication connection to the main unit, max. 12 units)			E10 Series/E15 Series (Direct connection to the main unit, max. 1 unit)；X10 Series (Communication connection to the main unit, max. 12 units)
Programming software	ZX Works, compatible with GX Works 2 (under development, future support)

Special-purpose model series

Item	ZX351
Pictures
Functions	The ZX351 is a PLC controller specially designed for tool grinders, with in-depth adaptation to precision grinding scenarios for multiple cutting tools. It fully supports the grinding processes of various tools including end mills, bull nose cutters, chamfer cutters and ball end mills. Its key advantages are the ability to realize multi-axis coordinated interpolation motion for precise control of grinding paths and accuracy; it also integrates Modbus communication interfaces, facilitating seamless system integration and efficient data transmission.
Run/Stop	Can realize PLC operation/start-stop function
Communication specifications	1-channel RS232; 1-channel RS485
Power Failure Retention	1S
Pulse output	5-channel high-speed output (first 2 channels 200K, last 3 channels 100K)
Input and output	The main body comes with 8 input and 8 output ports (including high-speed input and output).
High-speed Counter	3-channel Single-ended High-speed Counting (100K) or 2-channel AB-phase High-speed Counting (100K)
Data/Storage capacity	28K or 64,000 steps of program storage units and 4K power failure retention data capacity
Input Power Supply	DC 24V±20%, Max. 4A, Typ. 2.4A; supports short circuit/reverse polarity protection, no external UPS required

Main unit direct-connection type

Model	E10-0808T	E10-0808R
Pictures
Interface Specification	8-channel DI and 8-channel DO/NPN-type Sink Output	8-channel DI and 4 groups of 8-channel Relay Outputs
Parameter Specification	Isolation Method: Optocoupler IsolationRated Voltage: 24V DC±20% Current Consumption: Max. 0.3A per point	Isolation Method: Optocoupler Isolation/Relay Isolation Rated Voltage: 24V DC±20%Current Consumption: Max. 5A per point Output Characteristics: AC 250V/DC 30V 5A

Model	E15-USB	E15-0808U	E15-2SCOM
Pictures
Interface Specification	Support USB flash drive download program (and also supports firmware upgrade in the future)	8-channel DI & 8-channel NPN-type Transistor Output Supports program downloading and firmware upgrading via USB flash drive	2-channel serial port communication expansion module
Parameter Specification	USB 2.0: Supports FAT/FAT32 formats	Isolation Method: Optocoupler Isolation Rated Voltage: 24V DC±20% Current Consumption: Max. 0.3A per point USB2.0: Supports FAT/FAT32 file systems	1-channel RS485 Communication1-channel configurable as RS485 or RS232 Communication
